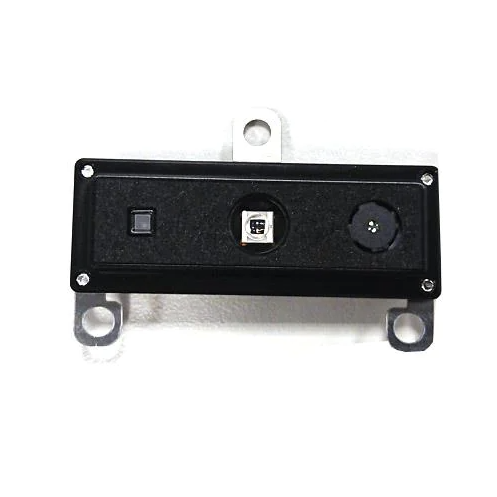

RLC-MS3F
가격문의(상세정보 참조)
- Product model RLC-MS3F
- Baseline 25 mm
- Working voltage 4.5-10
- Communication interface Serial port, serial port level 3.3V, default baud rate 115200
- Sleep mode power consumption 12 uA @ 5-10V
- Working power consumption Peak 600mA@5V，Average 130mA @ 5V（single unlock time 1.0s）
- Power consumption per unlock 0.035mAh @ 5V (0.18mWh)
- Unlock latency around1.0 s

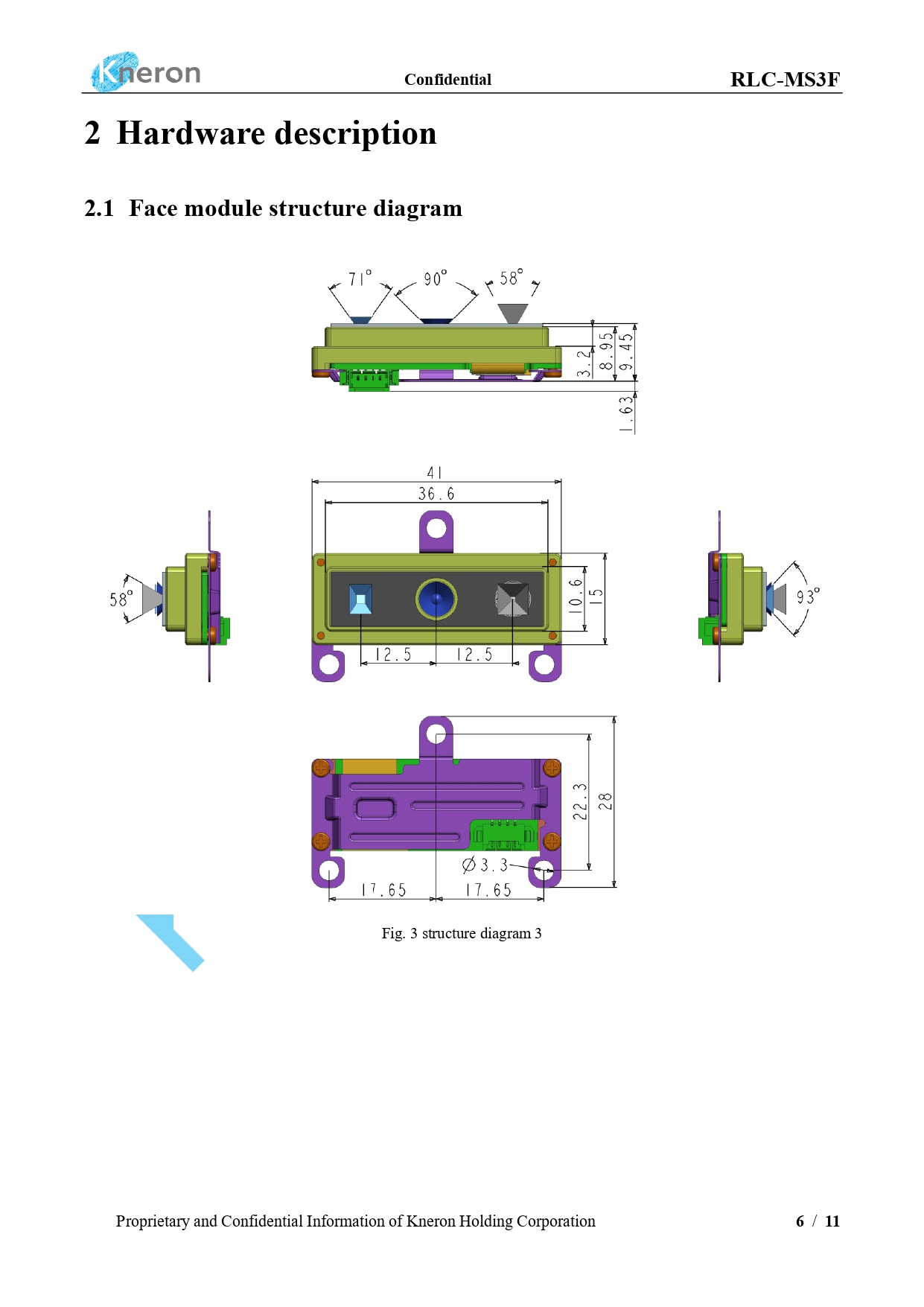

- Dimension L41.0mm * W15.0 mm * H9.45 mm
- Camera FOV H 57.8° * V 71.7°
- Optical security The structured light laser meets the Class 1 standard
